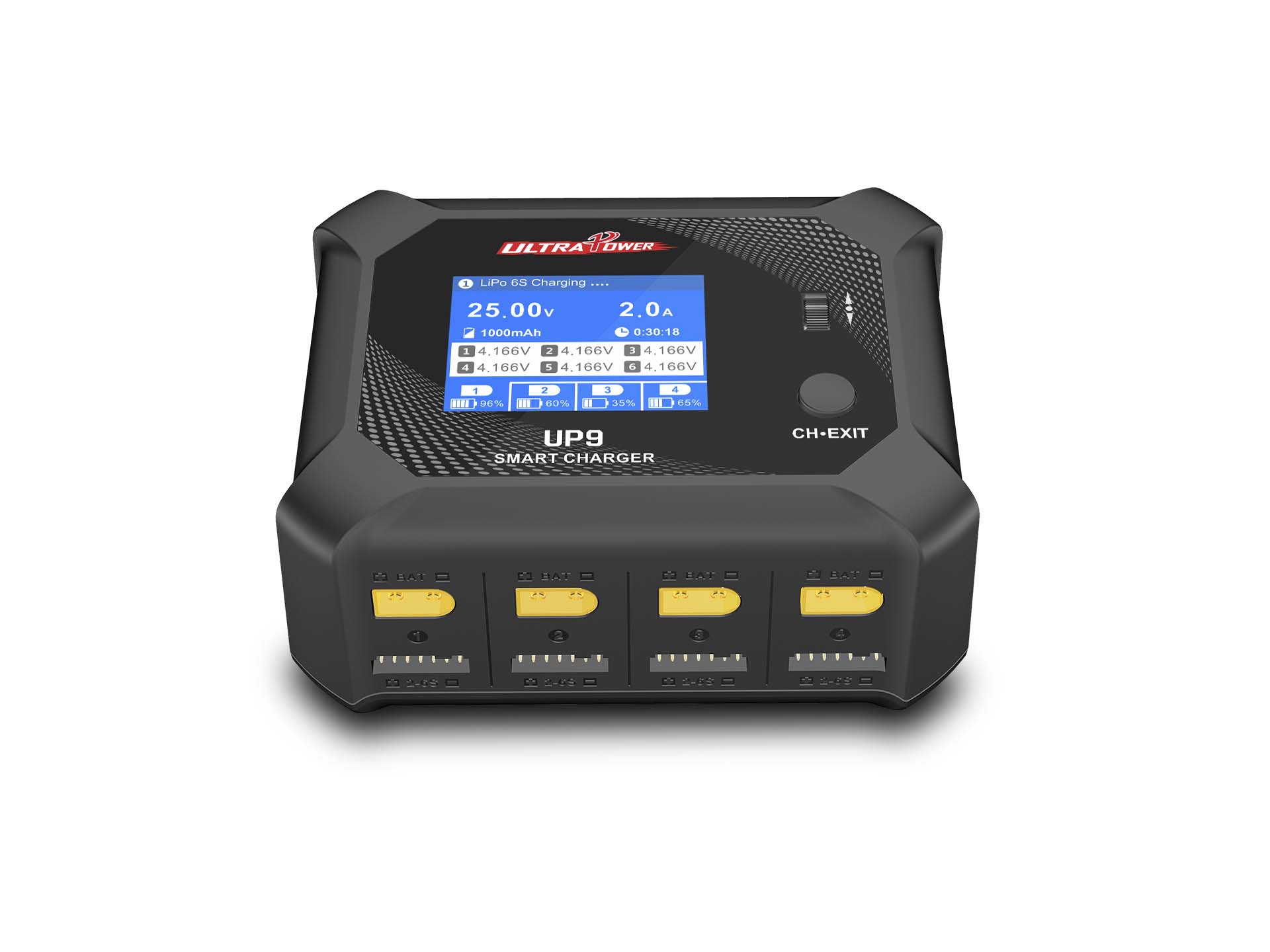

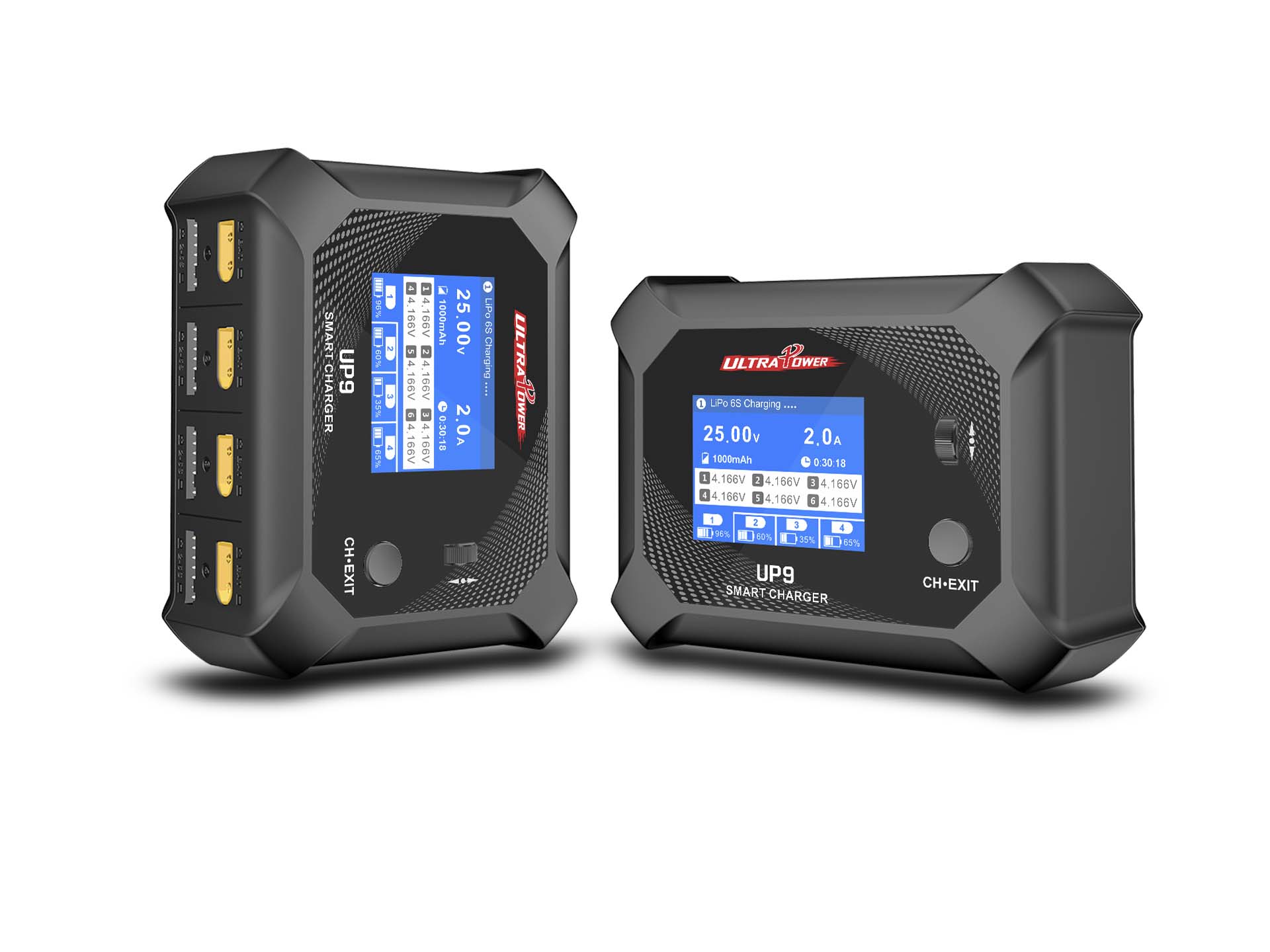

UP9 Balance Charger 200W
Order until 15:00 (Local time Europe/Zurich) and your selection will most likely be shipped today.
SWAYTRONIC
UP9 Balance Charger 200W
Measures:
135x105x58 mm
Weight:
0.75
Kg.
Product number:
7640370546284
Availability:
Available
Delivery Time:
1 - 2 days
CHF 149.00*
Accessories
Please select here conveniently other products from Accessories and Similar items and add them to your order by clicking on the shopping cart in the desired quantity.
Product information "UP9 Balance Charger 200W"
ULTRA Power UP9
Ultimative Power und Performance - Kompomisslose Qualität.
Das neue UP9 Ladegerät.
Der Vierfach-Lader verfügt über 4 x 25W Ladeleistung (AC) sowie 4 x 50W (DC) und bis 5A Ladestrom.
Mit der unabhängigen Shuttle-Taste lässt sich das Ladegerät einfach bedienen und ist sehr benutzerfreundlich.
Die vier Ausgänge liefern eine Wattleistung von insgesamt 100W (AC) bzw. 200W (DC) welche deine Akkus mit Energienachschub versorgen werden.
ACHTUNG: Im Lieferumfang befinden sich keine Balanceradapter. Geeignetes Produkt: 7640159362371
Für den Anschluss von normalen Ladekabeln mit 4mm Goldstecker empfehlen wir folgenden Adapter: 7640182623104
Lieferumfang:
UP9
Netzkabel 220V
1x Manual englisch
| Balancer equalisation current per cell (mA): | 300 |
|---|---|
| Brand: | Swaytronic |
| Charging current channel 1 (A): | 0.1-5.0 |
| Charging current channel 2 (A): | 0.1-5.0 |
| Charging current channel 3 (A): | 0.1-5.0 |
| Charging current channel 4 (A): | 0.1-5.0 |
| Charging power channel 1 (W): | 50 |
| Charging power channel 2 (W): | 50 |
| Charging power channel 3 (W): | 50 |
| Charging power channel 4 (W): | 50 |
| Height (mm): | 58 |
| Input voltage AC (V): | 100-240 |
| Input voltage DC (V): | 11.0-18.0 |
| Length (mm): | 135 |
| Supported battery types: | LiIo LiPo LiHV LiFe NiMH NiCd Pb |
| Supported cell count LiIo LiPo LiFe: | 1-6 |
| Supported number of cells: | 1-6 |
| Supported number of cells NiMH NiCd: | 1-16 |
| Supported number of cells lead battery: | 1-12 |
| Total charging power DC (W): | 200 |
| Weight (gr.): | 550 |
| Width (mm): | 105 |
