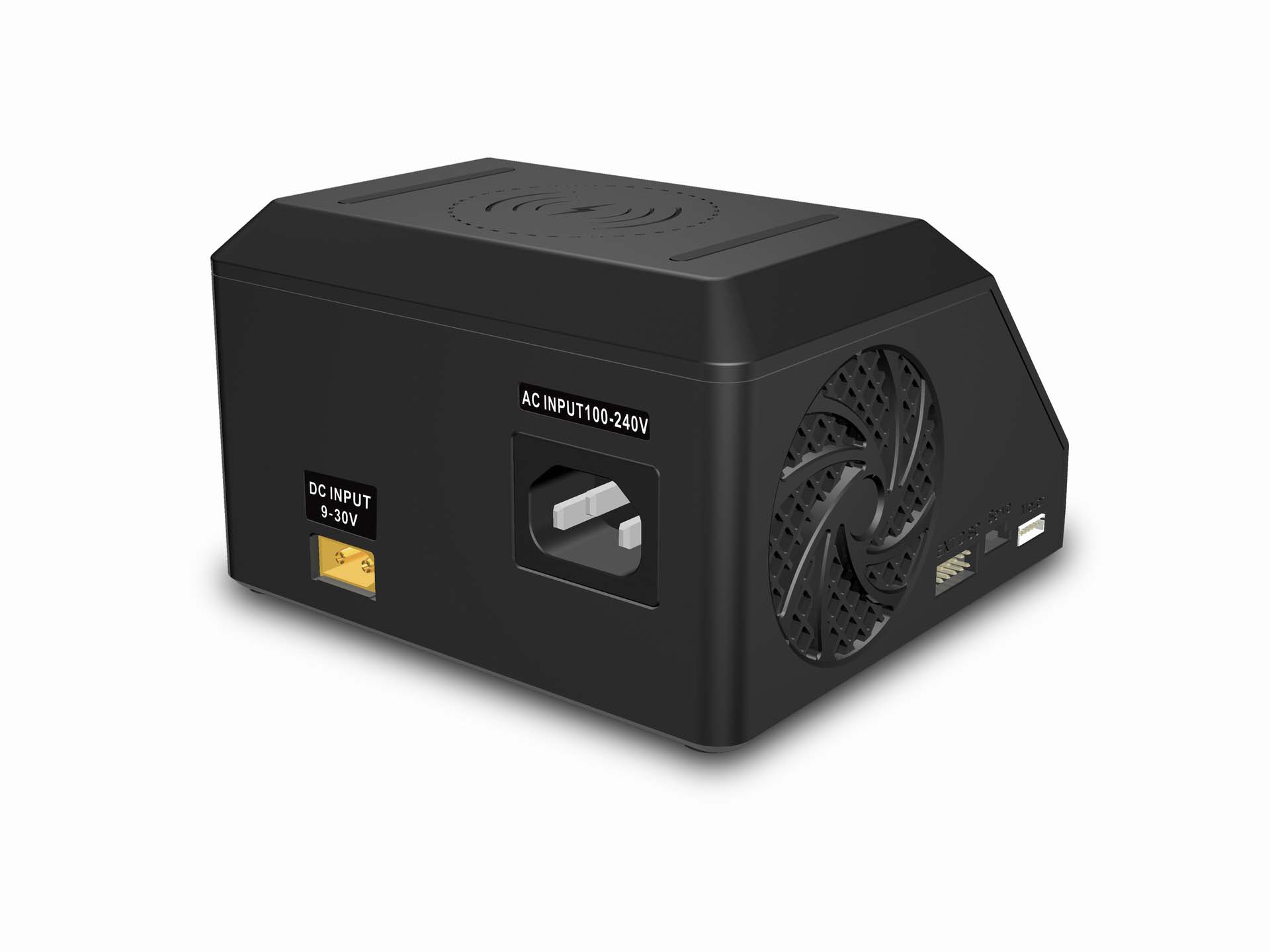

UP8 Balance Charger 600W
Order until 15:00 at 30.12.2024 (Local time Europe/Zurich) and your order will be approx. shipped at the same day.
SWAYTRONIC
UP8 Balance Charger 600W
Measures:
125x119x76 mm
Weight:
0.75
Kg.
Product number:
7640370546277
Availability:
Available
Delivery Time:
1 - 2 days
CHF 224.00*
Accessories
Please select here conveniently other products from Accessories and Similar items and add them to your order by clicking on the shopping cart in the desired quantity.
Product information "UP8 Balance Charger 600W"
ULTRA Power UP8
Ultimative Power und Performance - Kompomisslose Qualität.
Das neue UP8 Ladegerät. Der DUO Lader verfügt über 2 x 200W Ladeleistung (AC) sowie 2 x 300W (DC) und bis 16A Ladestrom.
Mit den 2 unabhängigen Shuttle-Tasten lässt sich das Ladegerät einfach bedienen und ist sehr benutzerfreundlich.
Die beiden Ausgänge liefern eine Wattleistung von insgesamt 400W (AC) bzw. 600W (DC) welche deine Akkus mit massenhaft Energienachschub versorgen werden.
Aber damit nicht genug!
Das Ladegerät verfügt auch über eine Motor und Servo Testfunktion.
Mit dem externen Entladegerät UP-D200 (nicht im Lieferumfang enthalten) kannst Du zusätlich die Entladeleistung auf 200W erhöhen.

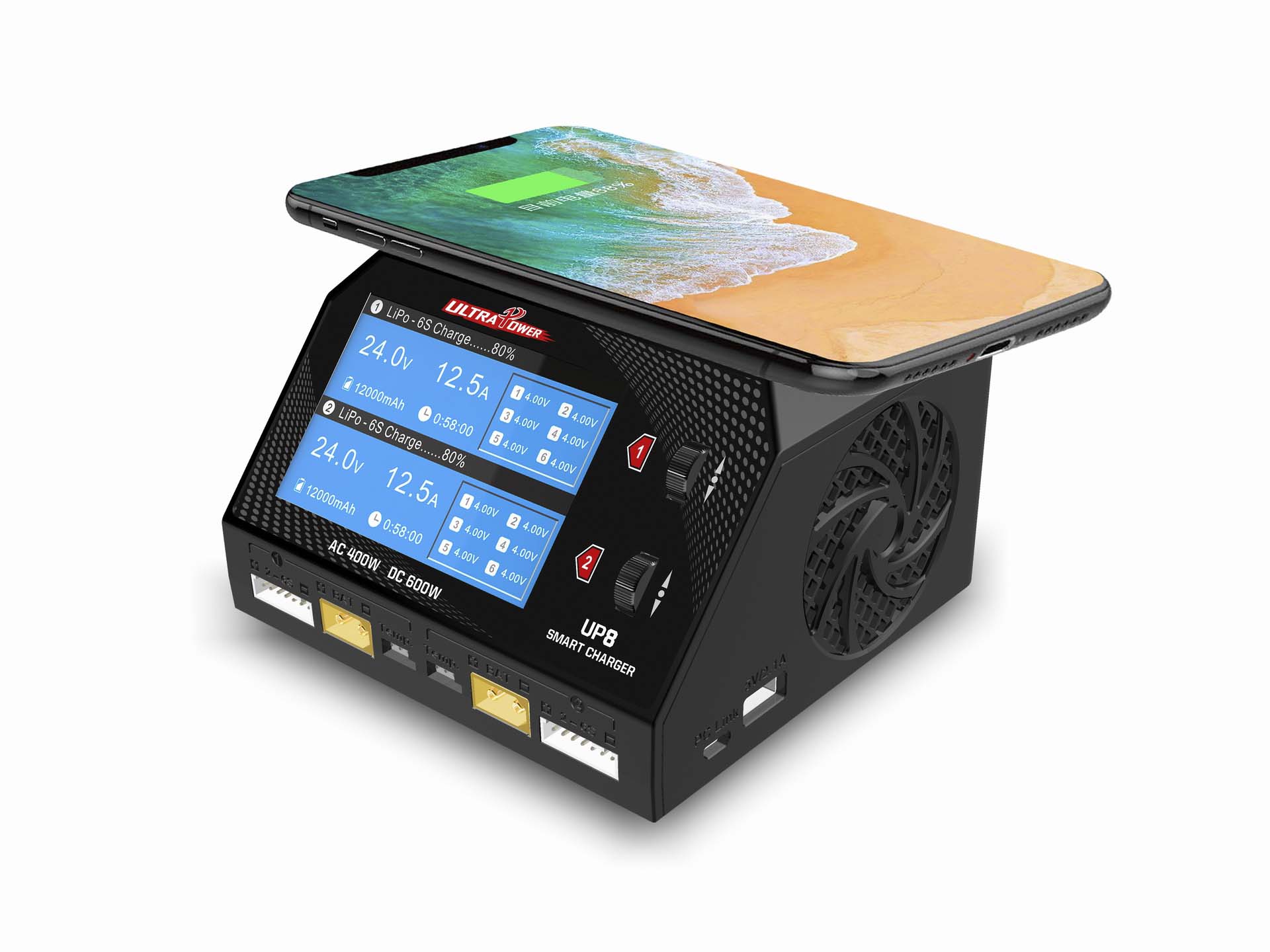

Das UP8 verfügt zusätzlich über ein Wireless 10W Ladepad auf der Oberseite des Gerätes. Somit kannst Du dein Mobiltelefon gleich mitladen.
ACHTUNG: Im Lieferumfang befinden sich keine Balanceradapter. Geeignetes Produkt: 7640159362371
Für den Anschluss von normalen Ladekabeln mit 4mm Goldstecker empfehlen wir folgenden Adapter: 7640182623104
Lieferumfang:
UP8
Netzkabel 220V
1x Manual englisch
| Balancer equalisation current per cell (mA): | 1000 |
|---|---|
| Brand: | Swaytronic |
| Charging current channel 1 (A): | 0.1-16 |
| Charging current channel 2 (A): | 0.1-16 |
| Charging power channel 1 (W): | 300 |
| Charging power channel 2 (W): | 300 |
| Connection options: | USB 2.1A for charging USB devices and connecting to the PC |
| Height (mm): | 76 |
| Input voltage AC (V): | 100-240 |
| Input voltage DC (V): | 9.0-30.0 |
| Length (mm): | 125 |
| Supported battery types: | LiIo LiPo LiHV LiFe NiMH NiCd Pb |
| Supported cell count LiIo LiPo LiFe: | 1-6 |
| Supported number of cells: | 1-6 |
| Supported number of cells NiMH NiCd: | 1-16 |
| Supported number of cells lead battery: | 1-12 |
| Temperature sensor connection option : | Yes |
| Total charging power DC (W): | 600 |
| Total discharge power (W): | 16 |
| Weight (gr.): | 780 |
| Width (mm): | 119 |
Login
Warranty for devices / models
The warranty in accordance with the following provisions is 2 years, unless otherwise agreed in writing. The warranty period begins with the date of delivery. Liability for normal wear and tear and wear parts is excluded.
Devices, models or accumulators which are equipped with a serial number will be recorded by us at the time of goods receipt and goods issue and assigned to the end customer.
Removing the serial number (sticker/inscription) will void the warranty.
The complete warranty conditions can be found in our AGB`s:
Recommendations
High quality 3in1 battery balancer / discharger / Z
High quality 3in1 battery balancer / discharger / cell monitor
This balancer can be used for Lipo and LiFe batteries. It measures the cell condition and can be used as a balancer to optimally balance the cells. In discharge mode, the cells can also be prepared for winter storage, for example.The cell charge status is displayed during the entire balancing process. This means that faulty cells can also be detected quickly before a crash is risked in flight.Supported battery types: Li-Polymer / Li-Fe:2 - 6 cells / 7.4V -22.2V
Balance Setting Range (lower limit) : 2V - 4.2V (preset with 3.3V)
Discharge Setting Range (lower limit) : 2V - 4.2V (preset with 3.9V)
Available
Tip
SWAYTRONIC LiPo SAFE-BAG red
Swaytronic LiPo SAFE-BAG
Protect yourself and your surroundings with the Swaytronic LiPo-Safe Bag.Made from fireproof material for optimum initial protection.
ATTENTION
The Lipo Safe Bag is designed to provide initial protection in the event of a battery fire. These products are not suitable for long-term storage of LiPos and accumulators. For a storage solution, Swaytronic recommends the LiPo Safe Case.
Available
Tip
SWAYTRONIC LiPo SAFE-BAG black
Swaytronic LiPo SAFE-BAG
Protect yourself and your surroundings with the Swaytronic LiPo-Safe Bag.Made from fireproof material for optimum initial protection.
ATTENTION
The Lipo Safe Bag is designed to provide initial protection in the event of a battery fire. These products are not suitable for long-term storage of LiPos and accumulators. For a storage solution, Swaytronic recommends the LiPo Safe Case.
Available
Tip
LiPo voltage tester 1S - 8S digital and programmable
LiPo voltage tester 1S - 8S digital and programmable
This voltage tester shows you the condition of your battery or cells within seconds.
1-8S Lipo / Li-ion / LiMn / Li-Fe.Voltage detection Accuracy: ± 0.01 V1S test mode Voltage range: 4-15VLow voltage alarm mode for 2-8SAlarm set point range: Off 2.7-3.8VWeight: 9g
Functions:
Display total voltage (all cells) and the individual voltage of each cell.During operation / use of a LiPo battery, the battery tester monitors the battery. The individual cells are permanently checked for their voltage and the alarm is automatically triggered when the set cell voltage of the cells is reached / undercut.Connect a battery (1-8 cells LiPo) to the balance plug of the battery tester. The voltage tester acknowledges the connection of the battery with 2 x 5 beeps. The display shows the total voltage (ALL) of the battery in volts and then changes to the voltage of the individual cells (No 1...No 2... No 3... etc.)
Setting the alarm for the cell voltage you want:
Press the button (lower edge button) once. The tester shows the currently set voltage value in volts (based on 1 cell). If this value corresponds to your wish, the programming is finished and the battery tester changes back to the home position in the display.If you want to change the alarm value, press the button twice. The battery tester switches to the next possible value.Repeat this step until the setting you want is displayed.
Programme options:
OFF / 2.70 V to 3.8 V at intervals of 0.10VPress the button once =display the set alarm valuePress the button twice=switch to the next valuePress the button several times to scroll through all values.
Recommendation:The alarm value should not be set below 3.3 volts! LiPo batteries react very sensitively to deep discharge.
Available
ME XT60H female to alligator clip 2m
ME XT60H female to crocodile clips 2m
Scope of delivery:
1 x adapter cable
Available
Tip
Adapter cable XT60 female to 4mm male
SWAYTRONIC adapter cable
Application
Found the right battery but the connector does not fit your model? No problem! With the high-quality adapter cables you can adapt your plug system as required - without soldering.
Your advantage
Thanks to a large selection of different versions, our adapter cables cover practically all common plug systems. This means you don't have to re-solder and you always have the right connector system at hand.
Available
Tip
FIREBALLS Fire Protection - Fire Extinguishing Granules 5 litres
FIREBALLS Fire protection fire extinguishing granulate for lithium ion batteries / 5 litres
New and sensational.
This fire extinguishing granulate is the perfect solution for the safe storage and extinguishing of lithium polymer batteries in case of fire.With the fire extinguishing granulate you are also perfectly prepared for all lithium fires in your workshop. If a battery should ignite, you can extinguish it quickly, safely and above all cleanly with the granulate!The granulate is applied softly to the fire. The expanded glass granulate surrounds the fire and smothers it. At particularly high temperatures, the expanded glass melts and spreads over the surface of the burning metal. The melt forms an airtight seal that crusts over as it cools, extinguishing the metal fire. A reignition is effectively prevented.The fire extinguishing granulate is suitable for class D and lithium ion fire loads. Problematic fire loads such as metal fires, battery fires, lithium fires or flammable liquids can be controlled and extinguished with the granulate without causing extinguishing agent damage.The extinguishing effect of the granulate on metal fires was tested and confirmed by the MPA Dresden using a sodium and magnesium fire.
Product features
Forms a protective layerDisplaces oxygenEnvironmentally friendlyResistant to ageingLow weightEasy to handleRetrofittable and maintenance-freeVery good liquid bindingAcid and alkali resistant100% inorganic Inert, low-reactionLow weight (low landfill costs of contaminated material)Low heat conductionSound-absorbingNon-perishableBacteria- and germ-free
Technical data
Supplied in sealed plastic bagCapacity=5 litresBall size=1 to 4mmWeight with packaging=1.2kgPackaging/dimensions = 345x145mm
Available
Tip
SWAYTRONIC LiPo Box black L
Swaytronic LiPo BOX black
Protect yourself and your surroundings with the Swaytronic LiPo BOX.Size: 250 x 150 x 100mm, made of fireproof material for optimal protection.
Available
Tip
SWAYTRONIC Charge Marker (2 pieces)
Swaytronic Charge Marker (2pcs.)
Charge Marker - manual charge level indicator red/greenWho doesn't know the problem of losing track of the charge level with many batteries? The solution now comes in the form of the small and ingenious Charge Marker. The Charge Marker can be
the Charge Marker can be attached directly to the battery using an integrated adhesive strip and can be used immediately.
Slide the slider to green after charging. After use, simply switch the slider back to red. This way you'll never lose control of the charge level of your batteries again and you'll always be ready for another flight!
Available
Tip

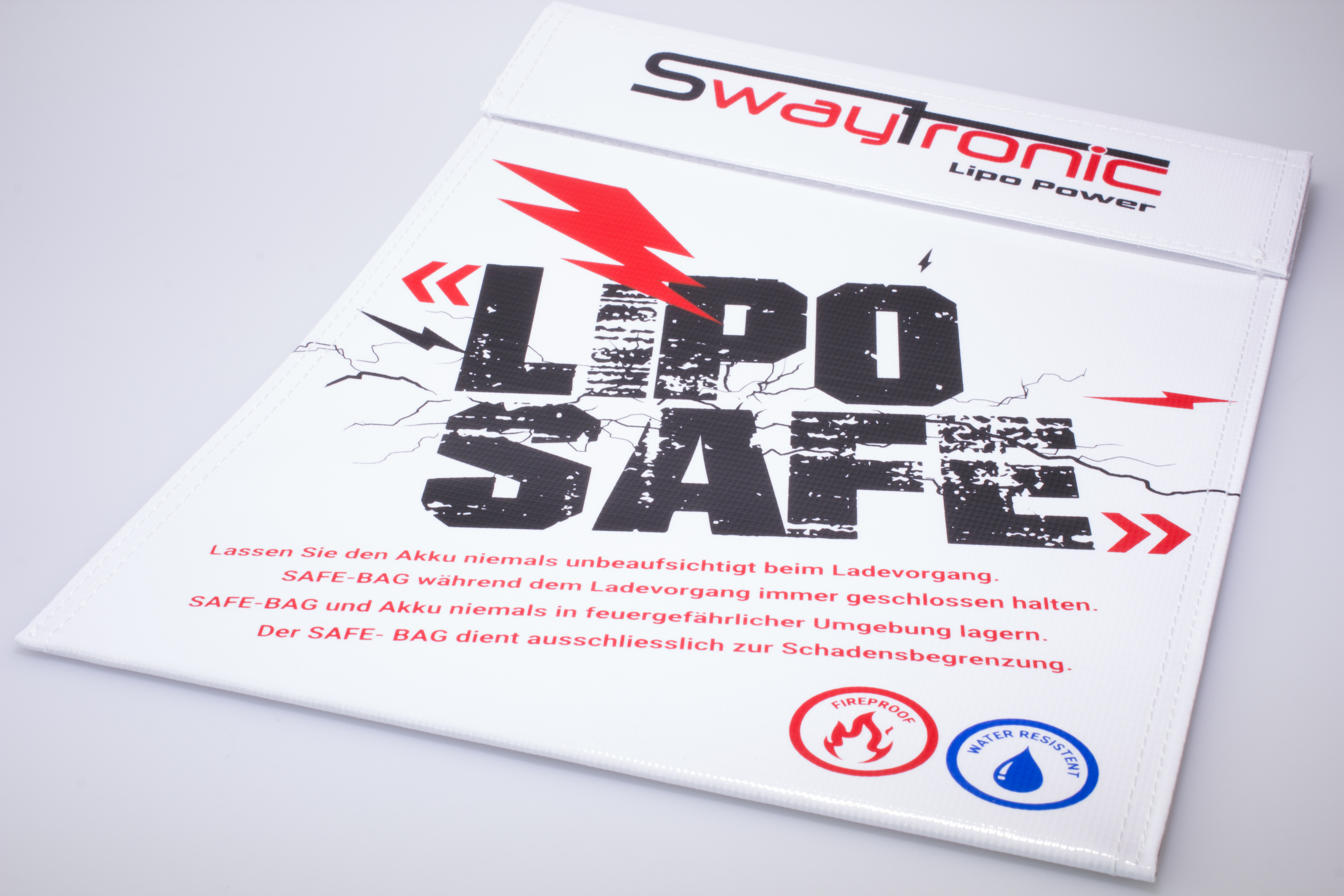

SWAYTRONIC LiPo SAFE-BAG white
