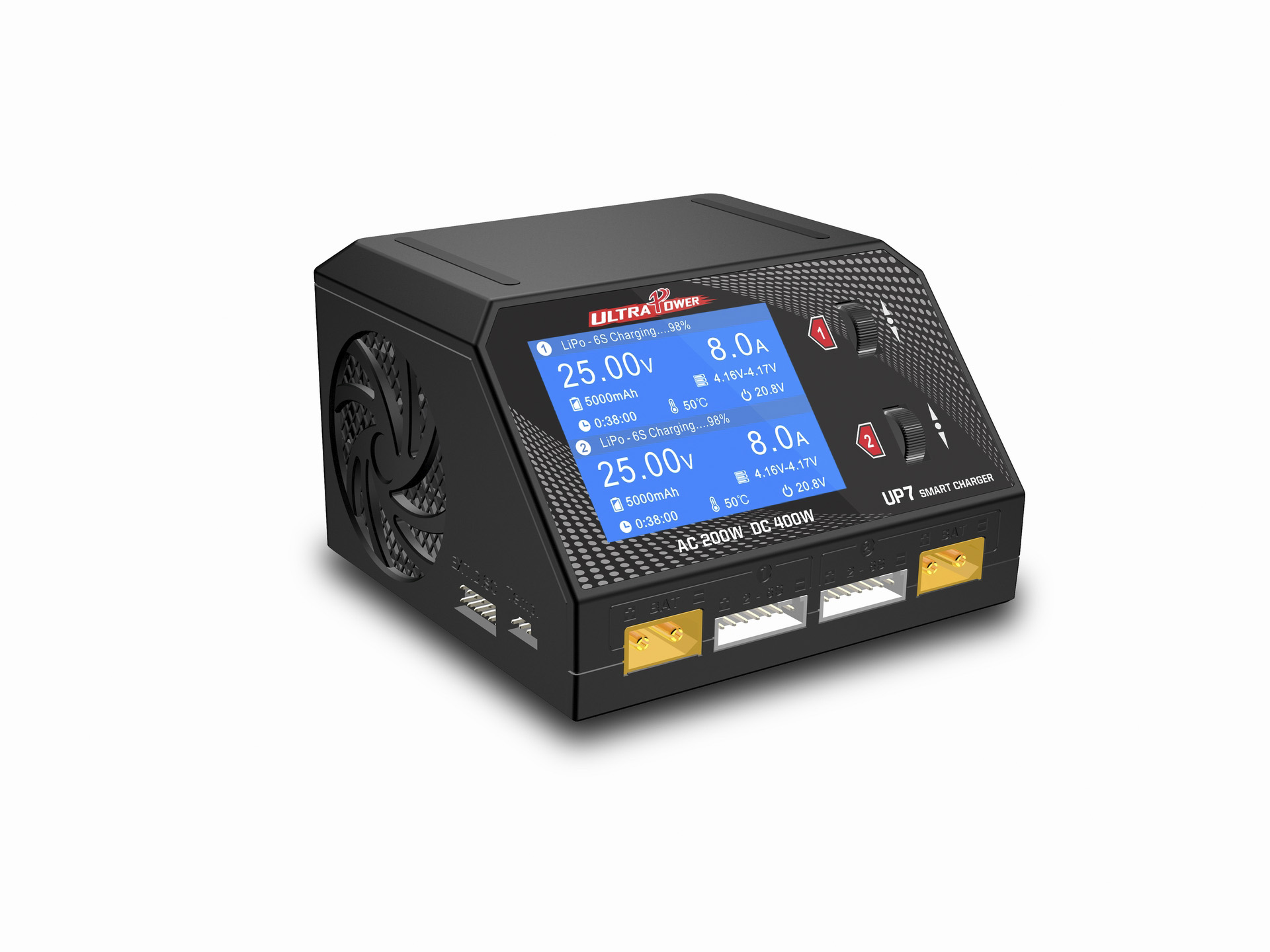

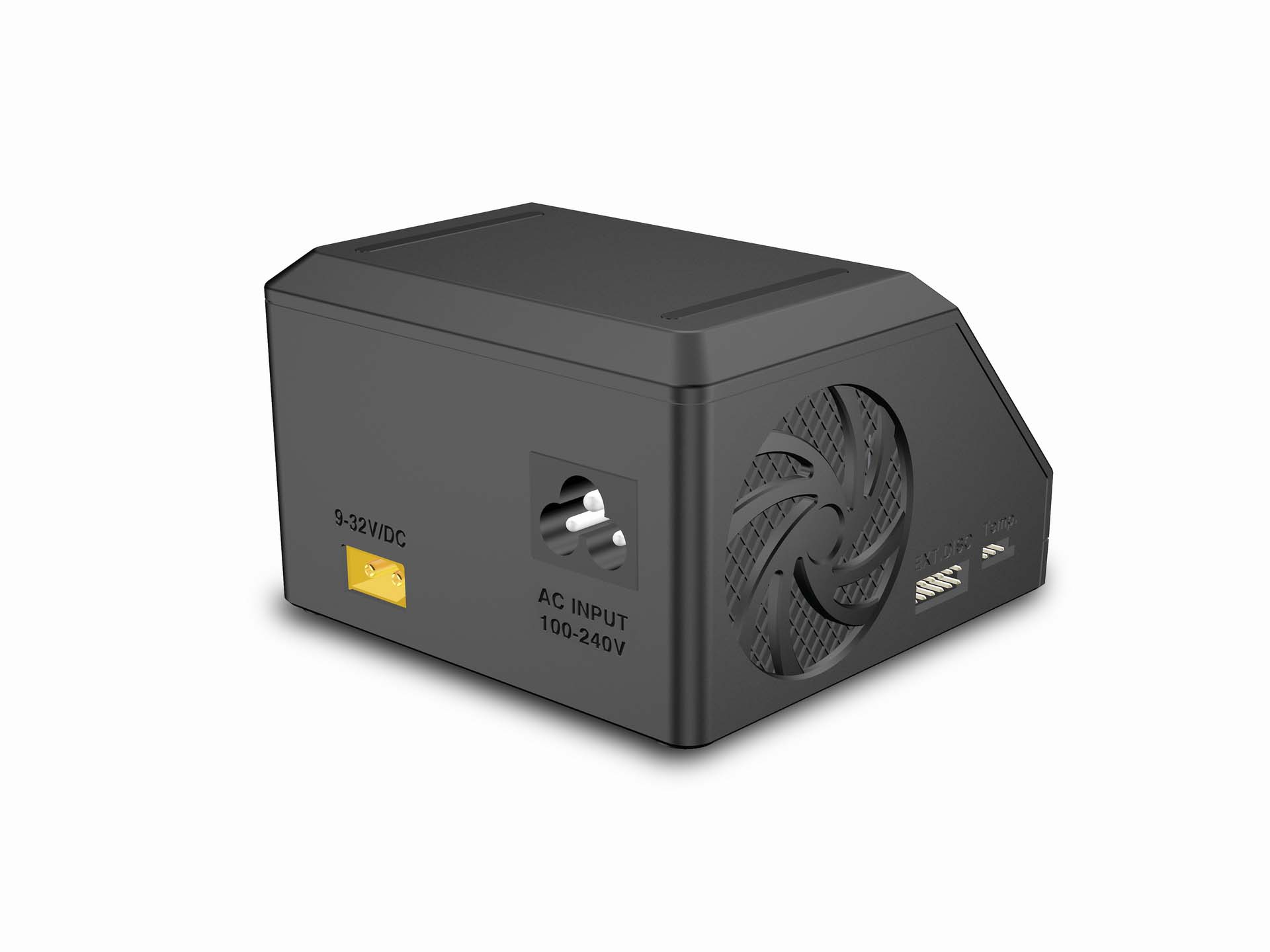

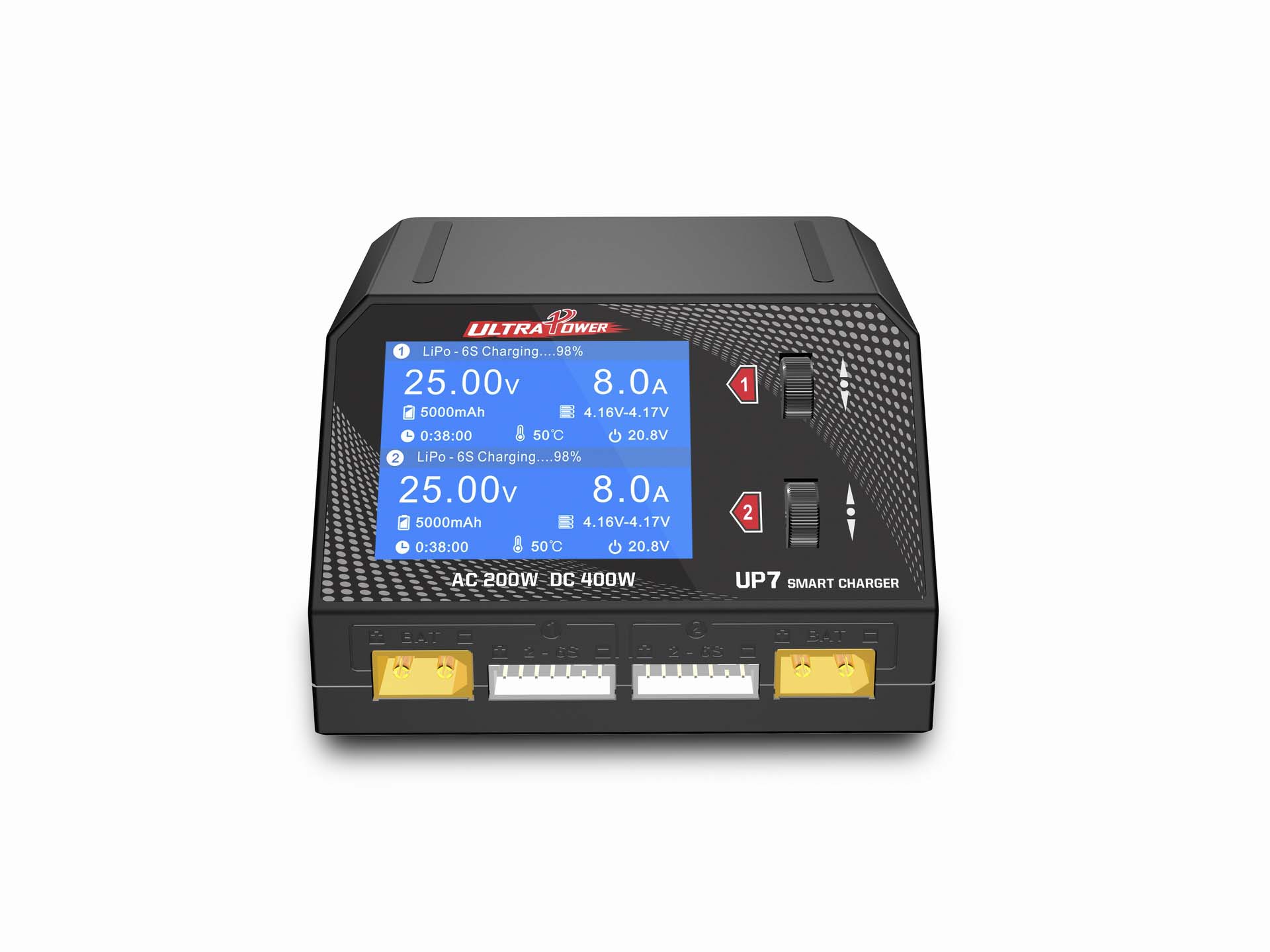

UP7 Balance Charger 400W
Order until 15:00 at 30.12.2024 (Local time Europe/Zurich) and your order will be approx. shipped at the same day.
SWAYTRONIC
UP7 Balance Charger 400W
Measures:
100x199x64 mm
Weight:
0.75
Kg.
Product number:
7640370546260
Availability:
Available
Delivery Time:
1 - 2 days
CHF 171.00*
Accessories
Please select here conveniently other products from Accessories and Similar items and add them to your order by clicking on the shopping cart in the desired quantity.
Product information "UP7 Balance Charger 400W"
ULTRA Power UP7
Ultimative Power und Performance - Kompomisslose Qualität.
Das neue UP6+ Ladegerät. Der kleine Kraftprotz!
Der DUO Lader verfügt über 2 x 100W Ladeleistung (AC) sowie 2 x 200W (DC) und bis 16A Ladestrom.
Mit den 2 unabhängigen Shuttle-Tasten lässt sich das Ladegerät einfach bedienen und ist sehr benutzerfreundlich.
Die beiden Ausgänge liefern eine Wattleistung von insgesamt 200W (AC) bzw. 400W (DC) welche deine Akkus mit massenhaft Energienachschub versorgen werden.
Aber damit nicht genug!
Mit dem externen Entladegerät UP200-D (nicht im Lieferumfang enthalten) kannst Du zusätlich die Entladeleistung auf 200W erhöhen.
ACHTUNG: Im Lieferumfang befinden sich keine Balanceradapter. Geeignetes Produkt: 7640159362371
Für den Anschluss von normalen Ladekabeln mit 4mm Goldstecker empfehlen wir folgenden Adapter: 7640182623104
Lieferumfang:
UP7
Netzkabel 220V
1x Manual englisch
| Balancer equalisation current per cell (mA): | 1000 |
|---|---|
| Brand: | Swaytronic |
| Charging current channel 1 (A): | 0.1-15 |
| Charging current channel 2 (A): | 0.1-15 |
| Charging power channel 1 (W): | 100 |
| Charging power channel 2 (W): | 100 |
| Height (mm): | 64 |
| Input voltage AC (V): | 100-240 |
| Input voltage DC (V): | 9.0-32.0 |
| Length (mm): | 100 |
| Supported battery types: | LiIo LiPo LiHV LiFe NiMH NiCd Pb |
| Supported cell count LiIo LiPo LiFe: | 1-6 |
| Supported number of cells: | 1-6 |
| Supported number of cells NiMH NiCd: | 1-16 |
| Supported number of cells lead battery: | 1-12 |
| Temperature sensor connection option : | Yes |
| Total charging power DC (W): | 400 |
| Total discharge power (W): | 12 |
| Weight (gr.): | 450 |
| Width (mm): | 199 |
