SWAYTRONIC - Solar panel flexible 150Watt V2 ETFE
Tip
SWAYTRONIC
SWAYTRONIC - Solar panel flexible 150Watt V2 ETFE
Solar cell type:
Monocrystalline

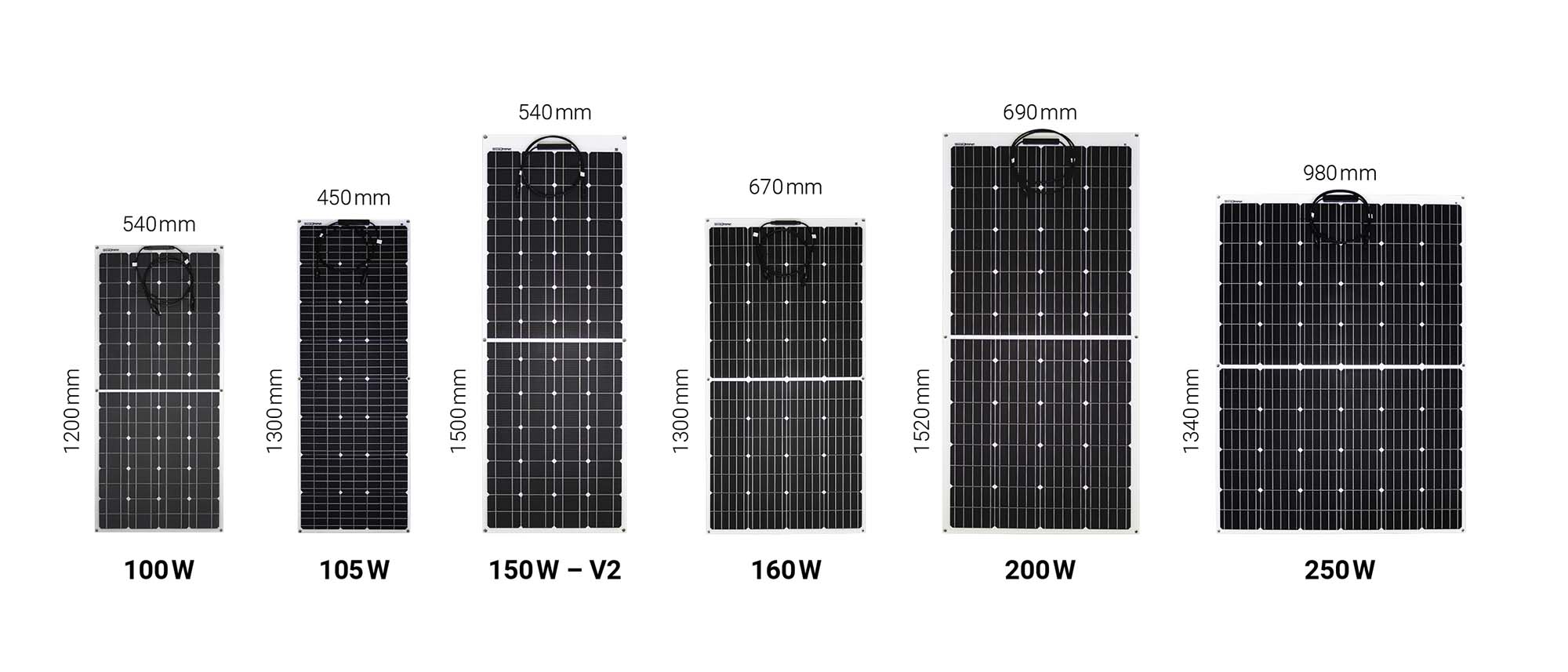

Measures:
1500x540x3 mm
Weight:
4.1
Kg.
Product number:
7640370542774
Availability:
on customer order
Delivery Time:
1 - 2 days
CHF 295.30*
Accessories
Please select here conveniently other products from Accessories and Similar items and add them to your order by clicking on the shopping cart in the desired quantity.
Product information "SWAYTRONIC - Solar panel flexible 150Watt V2 ETFE"
SWAYTRONIC - Solar panel flexible 150Watt
The advantages at a glance:
- Semi-flexible solar panel for stationary as well as mobile use
- Monocrystalline solar cells with a high efficiency of 21.6%
- Low installation height of 3mm (without connection box)
The semi-flexible solar panels from Swaytronic are equipped with monocrystalline solar cells with a high efficiency of 21.6%.
Due to the flexibility and the low installation height of 3mm, the solar panels from Swaytronic can be easily mounted (glued/screwed) even in tight spaces and on curved surfaces.
The range of application is in the stationary as well as mobile area. Can be used for caravans, boats, summer houses, island systems, etc. . The connection box is IP65 protected and therefore dustproof and protected against water jets from any angle.
The connection cables are equipped with commercially available MC4-compatible plugs/couplings.
A series connection of the panels up to 700V is possible and the solar panels can be connected in parallel to increase the output.
In combination with a solar charge controller and a storage battery (LiFePO4) from Swaytronic, a self-sufficient energy system can be realised without much prior knowledge.
Please note:
Mounting of flexible solar panels and ABS solar mounting systems
Swaytronic offers tested and verified adhesive sets for bonding flexible solar panels and ABS solar mounting systems.
SWAYTRONIC Adhesive Set-Solar V1 Article No. 7640370541517
SWAYTRONIC Adhesive Set-Solar V2 Article No. 7640370541524
Damage and consequences due to incorrect bonding and mounting procedures, as well as due to the use of materials not verified by Swaytronic - are generally excluded from any warranty and compensation claims.
Scope of delivery:
1 x Solar panel flexible 150W
| Brand: | Swaytronic |
|---|---|
| Current at Pmax (Imp): | 6.81 |
| Height (mm): | 3 |
| Length (mm): | 1500 |
| Maximum power (Pmax) in watts: | 150 |
| Open system voltage (Voc): | 28.6 |
| Operating temperatures (°C): | -40 - +85 |
| Protection: | IP65 |
| Short circuit current (Isc): | 8.1 |
| Solar cell type: | Monocrystalline |
| Voltage at Pmax (Vmp): | 22 |
| Weight (gr.): | 2200 |
| Width (mm): | 540 |
Login
Warranty solar panel / mobile energy
Warranty solar panel / mobile energy
Swaytronic assumes a voluntary manufacturer's warranty of 2 or a maximum of 5 years* for the solar panel product portfolio with exceptions. The effective warranty period can be found in the respective product. The choice of replacement, repair or reimbursement of costs is at the discretion of Swaytronic (Schweiz) AG.
*For more detailed information and allocations, please refer to the corresponding data sheets / product specifications.
Further claims, especially for compensation of direct or indirect damages caused by the defect of the device, the costs incurred by the removal and installation or the lost profit are excluded.
Models which are equipped with a serial number will be recorded by us upon receipt and dispatch of goods and assigned to the end customer.
Removing the serial number (sticker/inscription) will void the warranty.
Mounting of flexible solar panels and ABS solar mounting systems
Swaytronic offers tested and verified adhesive sets for bonding the flexible solar panel and ABS solar mounting systems.
SWAYTRONIC Adhesive Set-Solar V1 Article no. 7640370541517
SWAYTRONIC Adhesive Set-Solar V2 Article no. 7640370541524
Damage and consequences due to improper procedure of bonding and assembly, as well as due to use of materials not verified by Swaytronic - are generally excluded from any warranty and compensation claims.
Exclusion:
Not covered by warranty are damages, defects and malfunctions caused by:
(a) force majeure (e.g. lightning, overvoltage, thunderstorm, flood, fire).
b) normal wear and tear
c) mechanical impact or force such as transport damage, fall, deformation,
d) improper, abusive or negligent handling or use,
e) faulty installation or commissioning
f) malfunction of other connected devices,
g) non-observance of safety precautions,
h) Independent modifications, programming or repairs,
i) use not in accordance with the operating instructions or otherwise improper handling of the goods.
In addition, normal wear and tear or other defects do not affect the basic operation of the product.
External scratches, stains or natural mechanical wear and tear do not constitute a defect of the product.
You can find the complete warranty conditions in our AGB`s:
